Custom-Cut Engraving Materials and Strips
Custom-cut sheets, strips and special sizes for your engraving projects. At INNOGRAV, many of our engraving materials are available not only as full sheets but also as custom-cut sizes and strips manufactured to your specifications.
Whether for nameplates, machine identification, information signs or other professional signage applications, we process engraving materials according to your individual requirements. This saves you valuable time during further processing and provides ready-to-use materials for your projects.
Many custom-cut sheets and strips can be configured and ordered directly through our online shop. Our product configurator guides you step by step through the available cutting and finishing options.
Custom-Cut Engraving Materials
Do you need rectangular engraving material sheets cut to specific dimensions? We supply custom-cut engraving materials manufactured to your exact specifications. Depending on the material and product configuration, various cutting and finishing options are available.
- Custom Dimensions: Rectangular sheets cut to your required sizes.
- Rounded Corners: Various corner radii for a clean and professional appearance.
- Bevelled Edges: Bevelled edges on all sides for a premium finish on engraved signs and nameplates.
- Drilled Holes: Precision drilling for easy installation and mounting.
- Self-Adhesive Backing: Optionally available for suitable engraving materials.
Important Note: For technical manufacturing reasons, rounded corners cannot be combined with bevelled edges on all sides. Available finishing options depend on the selected engraving material.
Order Engraving Material Strips
In addition to custom-cut sheets, INNOGRAV also offers pre-cut strips made from various engraving materials. These strips are particularly suitable for producing nameplates, identification plates, labels and other rectangular signage applications.
Available Strip Lengths
- 610 mm
- 1000 mm
Depending on the selected engraving material, strips can be ordered with bevelled long edges or self-adhesive backing. The available options and configurations are displayed in the respective online product configurator.
Overview of Available Finishing Options
Rounded Corners
Rounded corners provide a smooth, clean and professional finish for your engraved signs and nameplates. The following corner radii are available:
R 2, R 3, R 4, R 5, R 6, R 8, R 10 and R 15 mm
Availability depends on the dimensions and properties of the selected engraving material.
Bevelled Edges and Edge Finishing
A bevel is an angled edge that gives engraved signs and nameplates a high-quality, professional appearance. During the beveling process, the edges are machined at an angle of 45 degrees.
Approximately one-third of the original material thickness remains unmachined. Depending on the selected product, bevelled edges can be applied to all sides or along the longitudinal edges only.
Self-Adhesive Engraving Materials
Many of our engraving materials are optionally available with self-adhesive backing. This makes installing engraved signs, nameplates and identification plates easier and more convenient.
Please refer to the respective product detail page to check whether a self-adhesive version is available for your selected material.
Drilled Holes for Sign Mounting
Upon request, we can provide pre-drilled holes in your engraving material for easy installation and mounting of signs and nameplates. Hole diameters ranging from 1.5 to 11 mm are available.

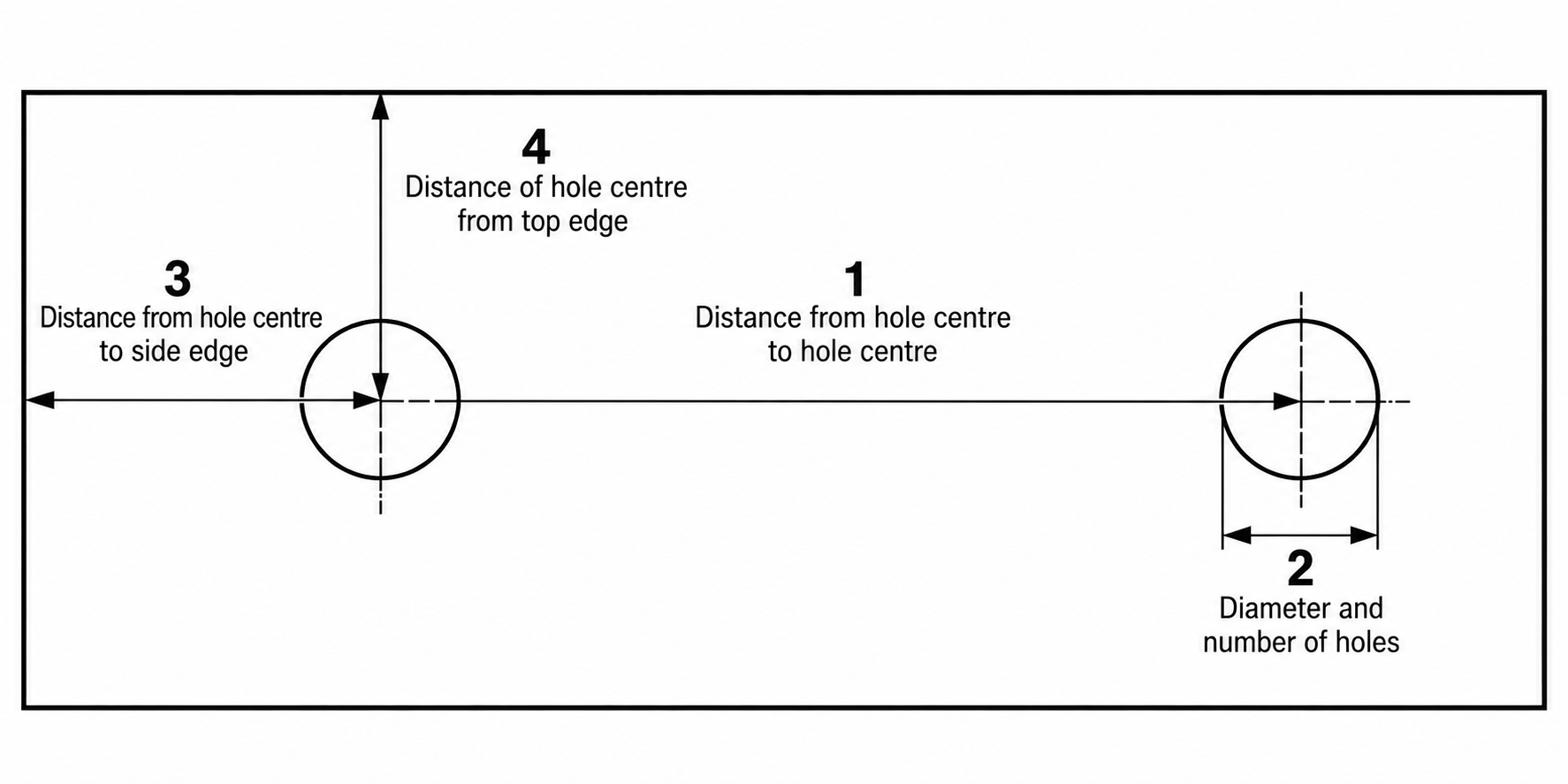

To ensure accurate positioning of the mounting holes, please provide the following specifications:
- Center-to-center distance between holes
- Diameter and number of holes
- Distance from the hole center to the side edge
- Distance from the hole center to the top edge of the sign
Manufacturing Tolerances According to DIN ISO 2768-m
During the production of our custom-cut engraving materials and strips, minor dimensional deviations may occur due to manufacturing processes.
Unless otherwise agreed, the following general tolerances apply to length and width dimensions in accordance with DIN ISO 2768-1, tolerance class m (medium).
| Nominal Dimension Range | Permissible Deviation |
|---|---|
| Over 6 up to 30 mm | ± 0.20 mm |
| Over 30 up to 120 mm | ± 0.30 mm |
| Over 120 up to 400 mm | ± 0.50 mm |
| Over 400 up to 1000 mm | ± 0.80 mm |
| Over 1000 up to 2000 mm | ± 1.20 mm |
Please take these manufacturing tolerances into account when planning your signs, nameplates and custom-cut engraving materials. If your project requires tighter dimensional tolerances or special precision requirements, we recommend contacting our team in advance to discuss the available manufacturing options.
How to Order Your Custom-Cut Engraving Materials
Many of our engraving materials can be easily customized and ordered through our online shop using the product configurator.
- Select Your Engraving Material: Choose your preferred material, colour and material thickness.
- Open the Product Configurator: Start customizing your order directly on the respective product detail page.
- Choose Your Format: Select from full sheets, pre-cut strips or custom-cut sizes, depending on the available product options.
- Select Finishing Options: Customize your engraving material with available options such as drilled holes, bevelled edges, rounded corners or self-adhesive backing.
- Complete Your Order: Add your configured product to the shopping cart and proceed to checkout.
Applications for Custom-Cut Engraving Materials
Custom-cut engraving materials offer a wide range of possibilities for professional signage, identification and industrial marking applications. Typical applications include:
- Industrial nameplates and machine identification plates
- Equipment and machinery identification
- Warning signs and information signs
- Control panels and technical labels
- Electrical installation labels and identification plates
- Custom engraving and signage projects
Choosing the right engraving material depends on the engraving process, environmental conditions, desired appearance and intended application. Our team will be happy to assist you in selecting the most suitable material for your specific requirements.
Frequently Asked Questions About Custom-Cut Engraving Materials and Strips
Can I Order Engraving Materials Cut to Size?
Yes. Many of our engraving materials are available not only as full sheets but also as custom-cut rectangular sheets made to your specifications. Available dimensions and finishing options can be found in the respective product configurator.
Are Drilled Holes and Rounded Corners Available?
Yes. Depending on the selected engraving material, you can choose from various finishing options, including drilled holes, rounded corners and bevelled edges. Please note that bevelled edges on all sides cannot be combined with rounded corners due to technical manufacturing limitations.
Can I Order Custom-Cut Sheets with Self-Adhesive Backing?
Many of our engraving materials are optionally available with self-adhesive backing, making installation and mounting easier. Available adhesive options are displayed on the respective product detail page.
Where Can I Find the Custom-Cutting Configurator?
The online product configurator is available directly on the product detail pages of compatible engraving materials in our online shop. It allows you to select custom dimensions and available finishing options before ordering.
Personal Advice on Custom-Cut Engraving Materials
Do you have questions about custom-cut sheets, engraving material strips, material selection or available finishing options? Our experienced team will be happy to assist you in selecting and configuring the right engraving materials for your specific requirements.
